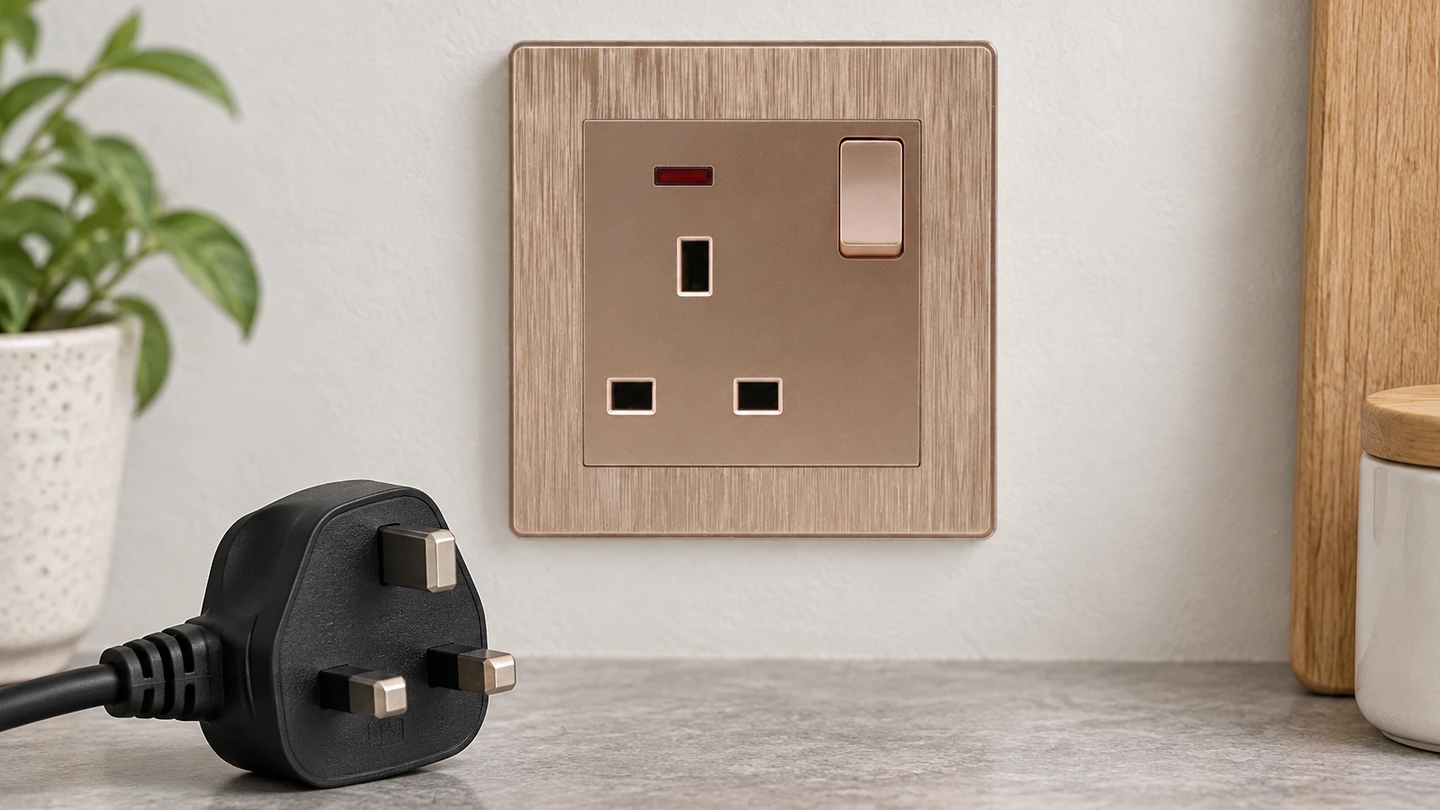

Why Do UK Sockets Have Switches?

A visitor can plug a charger into a UK socket and wonder why nothing happens until the small rocker is pressed. The switch is a local on/off control, separate from the appliance’s own button. It is convenient, but it is not what makes every part of the UK plug-and-socket system work: the plug fuse, socket shutters and circuit protection all have other jobs.

UK sockets commonly have switches so an appliance can be disconnected at the wall without pulling out its plug. They are an established option in the BS 1363 system, not a requirement that every socket must be switched. An unswitched outlet may suit equipment that needs continuous power. For a replacement or USB upgrade, the questions go beyond the rocker: the correct plug format, protective design, mounting space and model documentation still need checking. Switching off the outlet is normal operation; it is not the safe-isolation procedure required before electrical work.

Why have a wall switch when the appliance has its own button?

An appliance button may put the equipment into standby rather than disconnect its supply. A socket rocker offers another point of control without repeated unplugging. It is particularly useful when a plug is awkward to grip but the switch is accessible.

That does not mean the rocker should be used indiscriminately. A lamp and a refrigerator have different operating needs. For equipment that must remain powered, an accidental press can cause a service interruption rather than provide a useful convenience.

What do the socket switch, plug fuse and shutters actually do?

They address different situations. The rocker controls normal use. The plug fuse provides overcurrent protection associated with the appliance flex. Shutters restrict access to the socket contacts. The circuit’s earthing and protective devices remain necessary as well.

HSE advises secure isolation and proving dead before work. A stopped appliance is not evidence that the supply terminals behind the socket are safe to touch. This distinction matters particularly during a replacement, when the rocker is often the most obvious control in view.

Are UK sockets without switches unsafe?

No. A correctly selected and installed unswitched socket can be suitable for its purpose. The presence of a rocker does not compensate for damaged insulation, worn contacts, missing earthing or an overloaded circuit.

Condition matters more than the familiar appearance of the plate. Electrical Safety First identifies heat, burn marks, buzzing and crackling as warning signs. A socket with those symptoms needs assessment even if its switch still works. The socket-switch fault guide discusses symptoms that call for inspection.

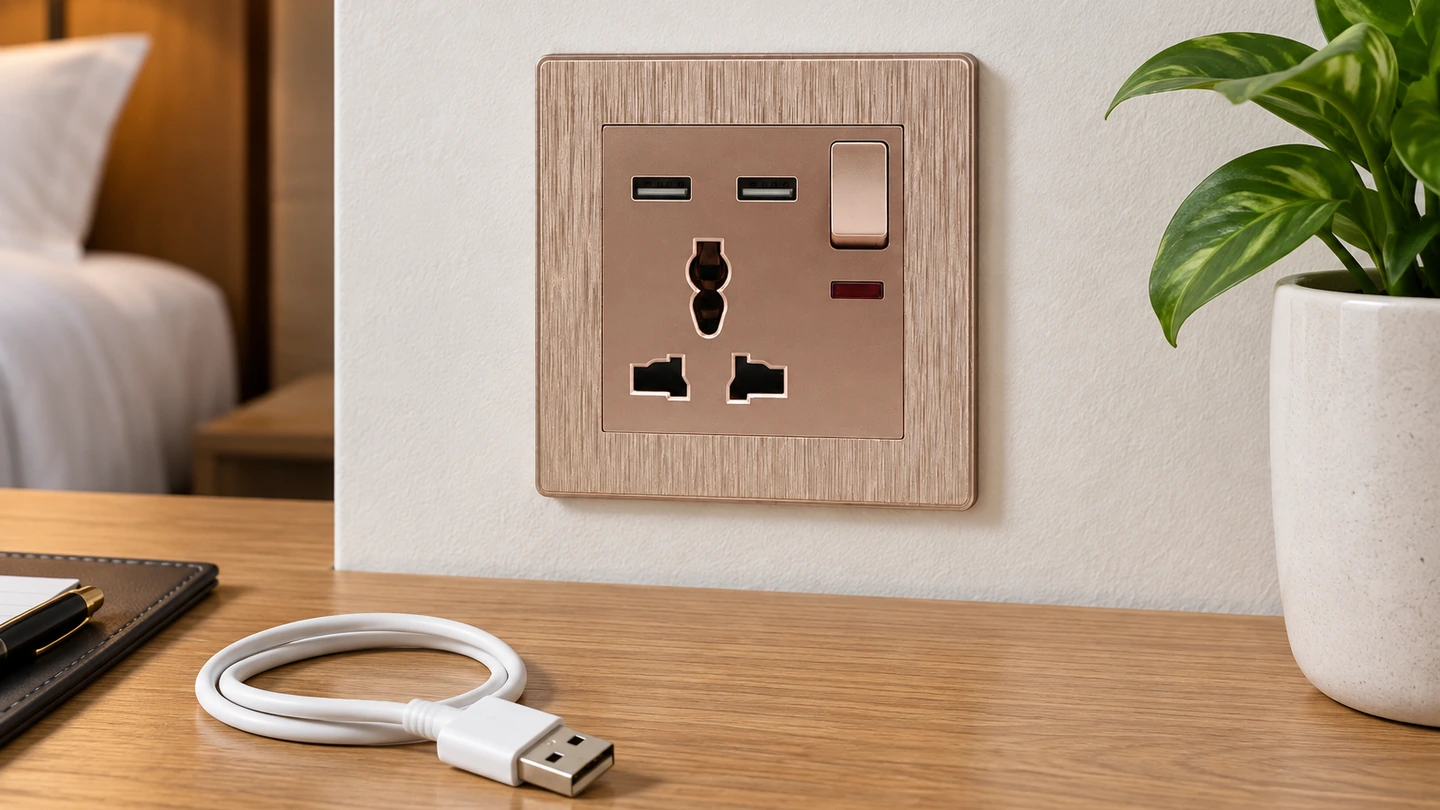

Does a UK socket with USB work differently?

Yes. It combines a mains receptacle with charging electronics. The module has its own output specification and space requirements, and the socket rocker may not control the USB supply. A charger appearing to work does not establish how the whole accessory is protected.

For a UK socket with USB and switch, request the exact model information rather than inferring the design from a plain socket. The plug fuse remains part of the plugged-in appliance’s arrangement; the wall accessory and USB module have separate product and circuit requirements. There is no universal answer that every USB socket needs the same extra fuse.

What should be checked before replacing a UK socket?

Begin with the required plug format and whether the connected load should be switched. Then check the exact accessory’s current rating, pole arrangement, terminals and box dimensions. For work in dwellings in England, the contractor also needs to establish the applicable requirements under the electrical-safety building regulations.

Do not substitute a universal socket merely because it accepts a familiar plug or has a similar finish. UK suitability needs the relevant model-specific evidence. General household standards such as IEC 60884-1:2022 provide context, but they do not establish that every socket meets the required national specification.

ABUK lists a 13A single switched socket and a separate universal socket with USB. These are different configurations, not interchangeable UK approvals. The light switches and sockets in Series 10 can be compared for a coordinated finish after the destination and installation requirements have been established.

What else do buyers ask about UK sockets?

Why do UK sockets have switches?

They offer local control without requiring the user to remove the plug. The switch is a convenience feature within the wider UK plug-and-socket system.

Are switched UK sockets safer than unswitched outlets?

Neither is automatically the safer choice for every use. Correct selection, product condition, circuit protection and installation matter; equipment needing uninterrupted power may suit an unswitched arrangement.

Do UK sockets with USB need a separate fuse?

Check the exact accessory’s instructions and circuit requirements. The appliance plug fuse and the USB module’s protective design are different matters, so a plain socket is not a reliable guide.

Can I replace a UK socket with a USB model?

Possibly, after checking the model’s UK suitability, circuit requirements, terminals and box depth. A matching faceplate size alone is insufficient.

Sources

• IEC 60884-1:2022: household plugs and socket-outlets.
• HSE electrical safety FAQs.
• Electrical Safety First: socket loading and warning signs.
• GOV.UK: Approved Document P.

The rocker makes a UK socket convenient to control; the fuse, shutters and installation protection do the other work. Choose between switched and unswitched versions around the appliance, then treat a USB upgrade as a different accessory rather than a cosmetic change. Before ordering, confirm the plug standard, charging specification and mounting space. ABUK’s switch and socket catalogue provides candidate products; request the documents for the exact model and destination before approving a replacement.
